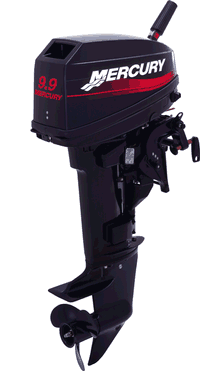

Mercury 9.9-hp Fishing Outboard Specifications Propshaft Horsepower: 9.9-hp (7.4 kW) Max RPM (W.O.T.): 5000-6000 Cylinders/Configuration: 2 Displacement: 16 cu.in. (262cc) Bore & Stroke: 2.38 in. x 1.80 in. (60mm x 46mm) Fuel Induction System: Cross-flow Exhaust System: Through Prop Lubrication System: Pre-mix 50:1 Cooling System: Water cooled with thermostat Ignition System: Capacitor Discharge Starting System: Manual or Electric Alternator: Standard Electric 6 amp (76 watt) / Optional Manual Gear Ratio: 2.0:1 Gear Shift: F-N-R on Tiller Handle Steering: Tiller or remote Trim positions: 3 Shallow-Water Drive Positions: 3 Shaft Length: 15 in. (381mm) / 20 in. (508mm) Remote Fuel Tank: Standard 3.2 gallon (12 L) Weight-Dry: 73.8 lbs. (34kg) Operator Warning System: Overrev protection Standard propeller: Aluminum 3 x 9"x 9" Propeller Options: Black Max, Black Diamond

Full Size Mercury Outboard Models

Four Stroke Mercury Outboards

Small Size Mercury Outboards

Model Horsepower
2.5 hp
3.3 hp
4 hp
5 hp
6 hp
8 hp
9.9 hp
15 hp
20 hp
25 Classic
30 hp
40 hp Classic 3 Cylinder
40 hp
50 hp Classic
60 hp
75 hp Classic

Mercury fishing outboards range from 6 to 25 horsepower.
They deliver smooth, reliable performance,
and their one-handed tiller control conveniently
puts the shift, throttle, steering and stop functions
in the palm of your hand.

All Fishing models feature:

2 cylinders
Capacitor discharge ignition (CDI)
F-N-R gear shift at tiller handle
Through prop exhaust
Run on unleaded 87 octane (minimum) fuel
